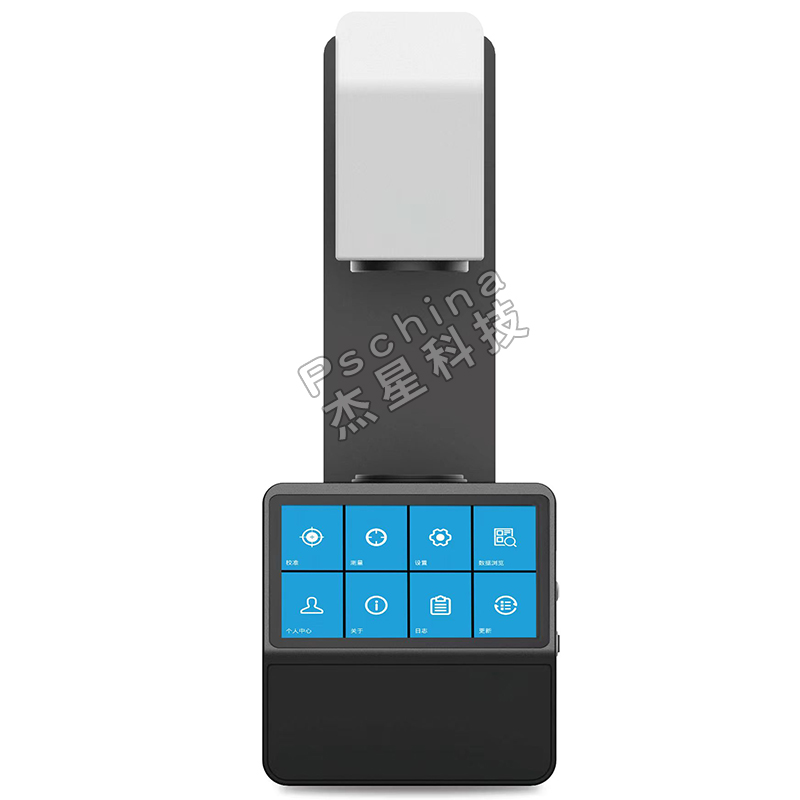

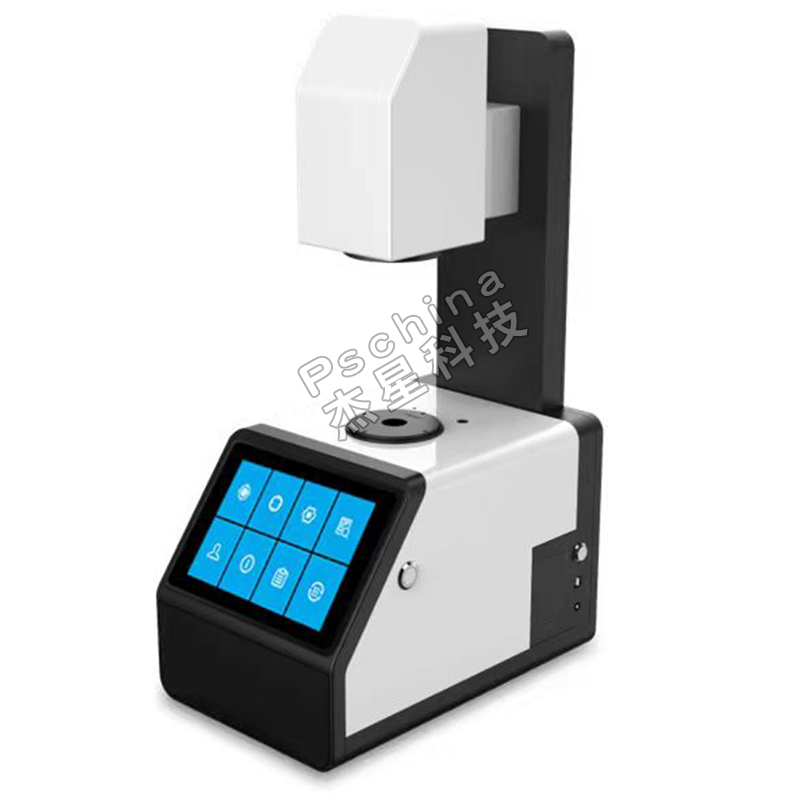

HW-110 Upgrade Haze Meter

model:Upgrade Haze Meter HW-110

Character: ASTM D1003/D1044 and ISO13468/ISO14782 standard for haze measurement and light transmittance measurement.

Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic, film, display screen, packaging and other industries.

Instrument Advantages

1). It conforms to both ASTM and ISO international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136. 2). Instrument is with a calibration certification from a third party laboratory. 3). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds. 4). Three kinds of illuminants A,C and D65 for haze and total transmittance measurement. 5). 21mm test aperture. 6). Open measurement area, no limit on sample size. 7). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc. 8). It adopts LED light source whose lifetime can reach 10 years.

Product Paramenters

Model	Upgrade Haze Meter HW-110
Character	ASTM D1003/D1044 and ISO13468/ISO14782 standard for haze measurement and light transmittance measurement. Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic, film, display screen, packaging and other industries.
Illuminants	D65,A,C
Standards	ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136
Test Parameter	ASTM and ISO (HAZE),Transmittance (T)
Test Apertures	21mm and 7mm
Instrument Screen	7 inches touch screen with Android Software
Haze Repeatability	Φ21mm aperture，Standard Deviation: within 0.05(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration)
Transmittance Repeatability	≤0.1 unit
Geometry	Transmittance 0/D (0 degree illumination, diffused receiving)
Integrating Sphere Size	Φ154mm
Light Source	Full spectrum LED light source
Test Range	0-100%
Haze Resolution	0.01 unit
Transmittance Resolution	0.01 unit
Sample Size	Open space, no size limit
Data Storage	Mass Storage, unlimited
Interface	USB
Power Supply	DC12V (110-240V)
Working Temperature	+10 – 40 °C (+50 – 104 °F)
Storage Temperature	0 – 50 °C (+32 – 122 °F)
Size	L x W x H:310mmX215mmX540mm
