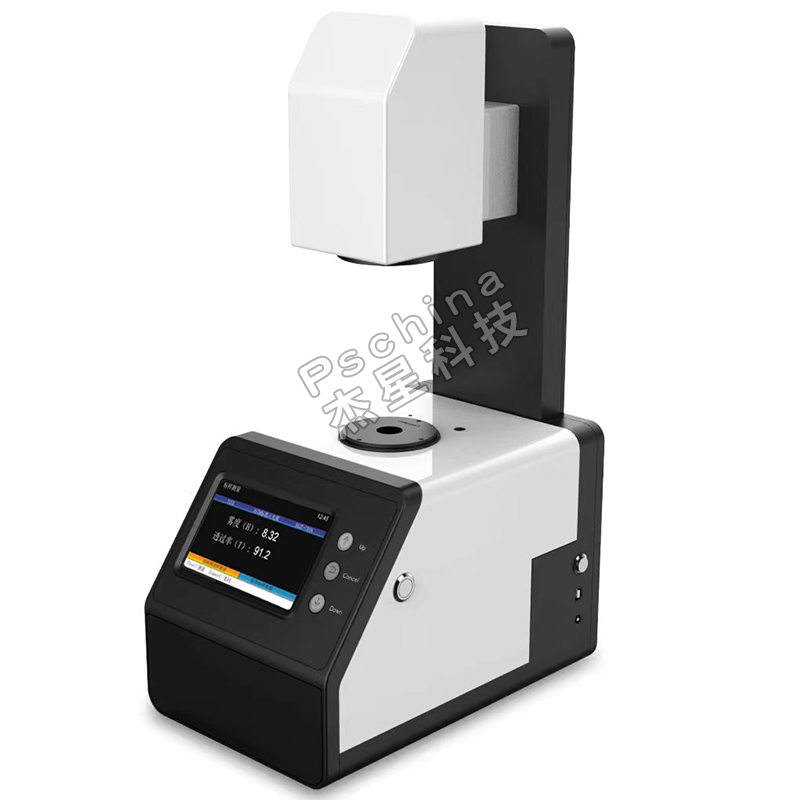

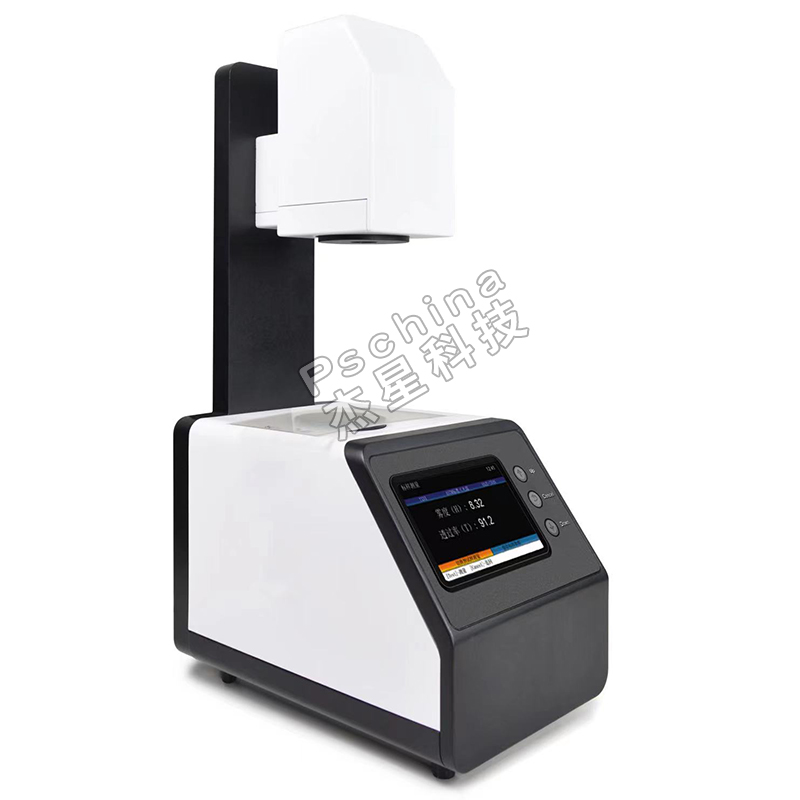

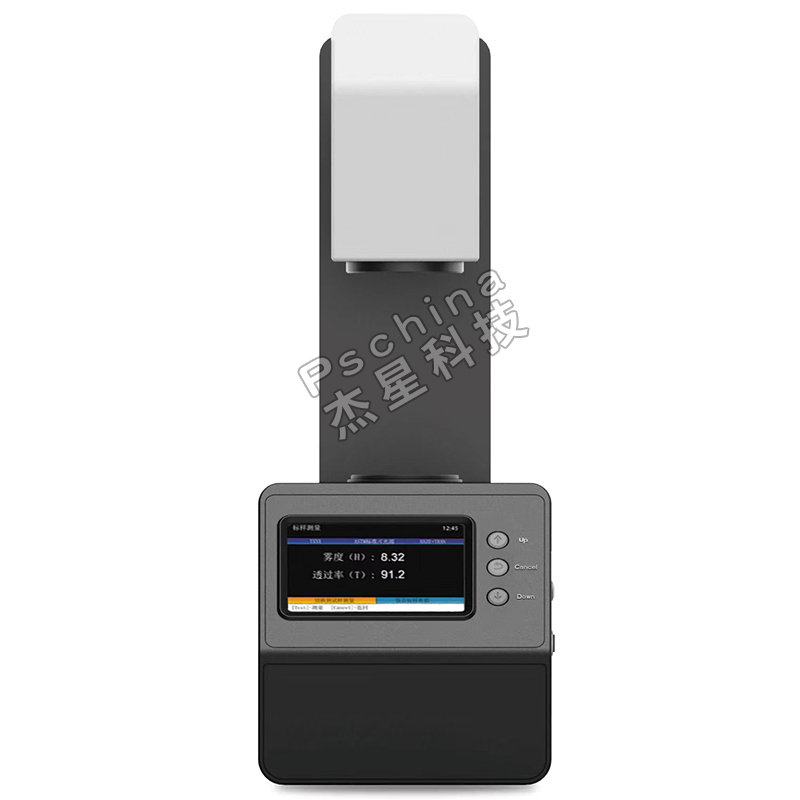

Basic Edition Haze Meter HW-09

model:Basic Edition Haze Meter HW-09

Test Aperture: 21mm

Instrument Screen：5 inches color LCD screen

Haze Resolution:0.01 unit

Instrument Advantages

1). It conforms to international standards GB/T 2410, ASTM D1003/D1044 and with a calibration certification from a third party laboratory. 2). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds. 3). Two kinds of illuminants A,C for haze and total transmittance measurement. 4). 21mm test aperture. 5). Open measurement area, no limit on sample size. 6). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc. 7). It adopts LED light source whose lifetime can reach 10 years.

Product Paramenters

Model	Basic Edition Haze Meter
Character	ASTM D1003/D1044 standard for haze and light transmittance measurement. Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic , film, display screen, packaging and other industries.
Illuminants	A,C
Standards	ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136
Test Parameter	ASTM (HAZE),Transmittance（T）
Test Aperture	21mm
Instrument Screen	5 inches color LCD screen
Haze Repeatability	Φ21mm aperture, Standard Deviation: within 0.1(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration)
Transmittance Repeatability	≤0.1 unit
Geometry	Transmittance 0/D (0 degree illumination, diffused receiving)
Integrating Sphere Size	Φ154mm
Light Source	400~700nm full spectrum LED light source
Test Range	0-100%
Haze Resolution	0.01 unit
Transmittance Resolution	0.01 unit
Sample Size	Open space, no size limit
Data Storage	10,000 pcs of samples
Interface	USB
Power Supply	DC12V (110-240V)
Working Temperature	+10 – 40 °C (+50 – 104 °F)
Storage Temperature	0 – 50 °C (+32 – 122 °F)
Instrument Size	L x W x H: 310mmX215mmX540mm
