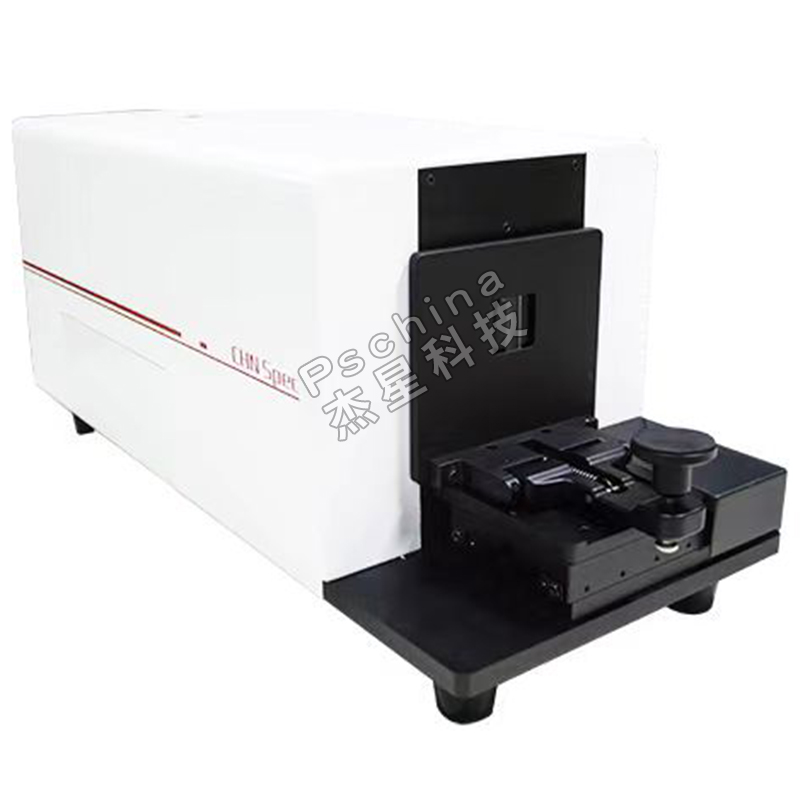

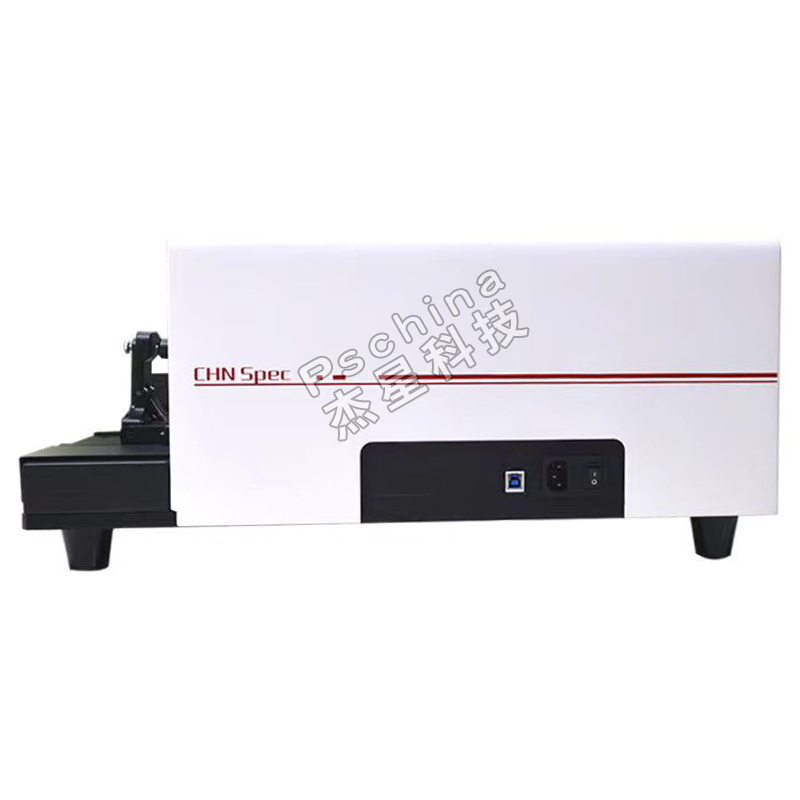

HPC-1050 Series Image Spectrophotometer
model: HPC-1050 Series Image Spectrophotometer
Sphere Diameter: 152mm / 6 inches
Spectral Resolution:2.5nm
Photometric range:0-200% resolution 0.01%
Product Description
Instrument Advantages
image spectrophotometer is the advanced model and can be used to measure most kinds of samples from different industries. image spectrophotometer can get every point of color and reflectance of image and the smallest point can achieve 0.0016 mm2 (0.04mm*0.04mm). Repeatability dEab≤0.01 (max.), can achieve the maximum repeatability dEab≤0.01※ regardless of whether it is measuring the white tile or the black cavity , which is a new standard for bench-top spectrophotometers. Adopt LED or pulse xenon lamp as light source to guarantee the traceability data consistency with the traditional color spectrophotometer. Perfect calibration structure and algorithm provide completely reliable short-term and long-term measurement repeatability. 20+ kinds of illuminants, 30+ kinds of indexes, SCI/SCE test mode. It covers all the functions of the traditional spectrophotometer, and can provide the same parameters and measurement conditions as the traditional spectrophotometer.
Product Paramenters
Model | HPC-1050 |
Instrument Type | Double beam d/8, SCI (specular component included)/ SCE(specular component excluded) |
Light Source | High-precision simulation of sunlight full wavelength LED |
Sphere Diameter | 152mm / 6 inches |
Wavelength Range | 400nm-700nm(Cover the entire visible light range) |
Spectral Resolution | 2.5nm |
Photometric range | 0-200%, resolution 0.01% |
30 read repeatability on white tile using double flash (CIELAB) ※ | ΔE*ab≤0.01 (max.) |
Inter-instrument agreement: reflectance measurements (CIELAB) ※※ | 0.25 |
Aperture Plates | LAV (Square 30mm illuminated, 25mm viewed), custom made aperture is available |
Standards | Conform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, JISL Z8722 condition C, ASTM D1003-07 |
Sensor | Silicon-based metal oxide image sensor |
Grating Method | Ultra-high precision holographic transmissive volume grating |
Image Resolution | 500dpi (high resolution) |
Minimum measurement area | 0.004mm2 (0.06*0.06mm) |
Observer Angle | 2°and 10° |
Illuminants | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84 |
Color Space | L*a*b, L*C*h, Hunter Lab, Yxy, XYZ |
